What is Reamer: Its Types, Nomenclature and Applications

A reamer is a cutting tool mostly used in metalworking and its very useful in expanding or finishing pre-drilled holes, bored to give a good finish, and an exact dimension.

In this article, you’ll learn what is a Reamer? 9 Different types of Reamer with images, Its nomenclature, and applications.

What is Reamer

A reamer is a tool used for expanding or finishing pre-drilled holes, bored, or cored to give a good finish and an exact dimension.

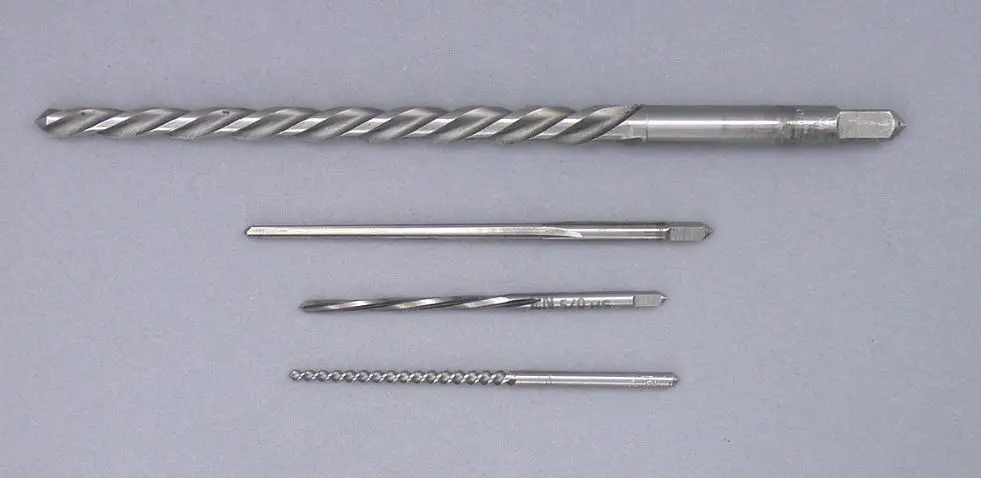

Reamer Types
CC BY-SA 2.0, https://commons.wikimedia.org/w/index.php?curid=89222

A reamer is a multi-tooth cutter that relatively small amounts of material. There are various classifications of reamers depending upon the operation, purpose, and shape. The commonly used reamer details in I.S. specifications are below.

You Might Like: Drilling machine – Parts, Types, Operations and More

Reamer Nomenclature

The following are the nomenclatures of a reamer illustrated in figures (A), (B), (C), and (D).

Reamer Nomenclature: Parallel hand reamer, right hand rotation with left hand helical flutes
Parallel Hand Reamer, Right Hand Rotation with Left Helical Flutes
Reamer Nomenclature: Entering end of a parallel hand reamer
Entering End of a Parallel Hand Reamer

Elements of Reamer

The reamer elements are described below.

1. Axis

The longitudinal centre line of the reamer.

2. Back Taper

The reduction in a diameter per 100 mm length of reamer from the entering end towards the shank.

3. Bevel Lead

The angular cutting portion at the end of the inlet to facilitate the entry of the reamer into the hole. It is not provided with a circular land.

Reamer Nomenclature: Hand Reamer with Pilot
Hand Reamer with Pilot

4. Body

That portion of the reamer extending from the entering end of the reamer to the commencement of its shank.

5. Circular Land

The cylindrically ground surface adjacent to the cutting edge, on the leading edge of the land.

6. Clearance

  • Primary: That portion of the land removed to provide clearance immediately behind the cutting edge.
  • Secondary: That portion of the land removed to provide clearance behind the primary clearance or circular land.

7. Cutting Edge

The cutting edge produced by the intersection of the face and the circular land or the surface left by the provision of primary clearance.

8. Face

The portion of the flute surface adjacent to the cutting edge on which the chip impinges as it is cut from the work.

9. Flutes

The grooves in the body of the reamer to produce cutting edges, to permit the chips to be removed, and allow fluid to reach the cutting edges.

10. Heel

The edge produced by the intersection of the surface left by the provision of secondary clearance and the flute.

11. Land

That portion of the fluted body left standing between the flutes, the surface, or the surfaces included between the cutting edge and the heel.

12. Pilot

A cylindrically ground portion of the body at the entering end of the reamer to keep the reamer in alignment.

13. Recess

That portion of the body is reduced in diameter below the cutting edges, pilot, or guided diameter.

14. Shank

Shank is the portion of the reamer by which it is held and driven.

15. Diameter

The maximum cutting diameter of the reamer at the inlet end.

Types of Reamer

The following are the main types of reamer tools:

  1. Chucking reamer with parallel or taper shank
    1. Fluted reamer
    2. Rose reamer
  2. Machine bridge reamer
  3. Machine jig reamer
  4. Parallel hand reamer with a parallel shank
  5. Parallel or taper shank socket head reamer
  6. Shell reamer
  7. Taper pin hand or machine reamer
  8. Expansion reamer

1. Chucking Reamer with Taper or Parallel Shank (Fluted)

The chucking reamer is shown in the figure. It is also known as a machine reamer. These types of reamer, It consists of short parallel cutting edges, with bevel lead, and long body recess between shank and cutting edges integral with a parallel or taper shank for holding and diving the reamer. The flutes are all straight but the shank may be straight or taper.

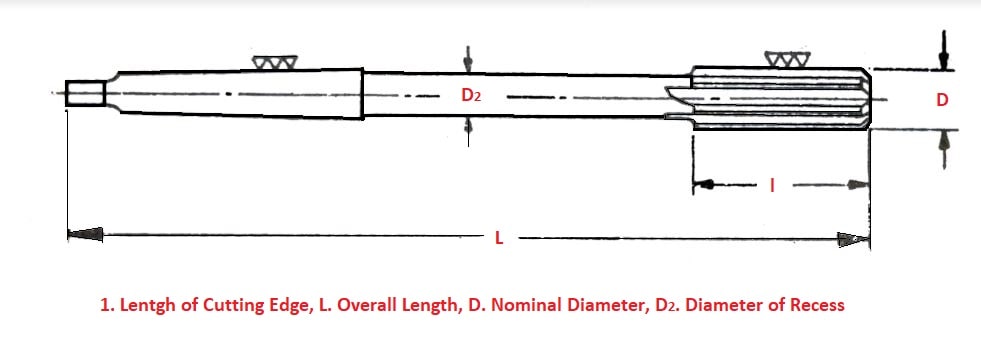

Chucking Reamer with Taper or Parallel Shank (Flutes)
Chucking Reamer with Taper or Parallel Shank (Flutes)

The reamer is intended to be used in a drill press, turret lathe, or screw-cutting machine. It is driven at slow speed and the entire cutting is done along with the flutes. The flutes are speed irregularly around the circumference of the body of the reamer.

This reduces the tendency to chatter. The fluted reamer is used for reaming more accurate work. The diameter of a straight shank chucking reamer varies from 1-5 to 32 mm and for taper shank from 5 to 32 mm.

2. Chucking Reamer (Rose)

It differs from the fluted type in that the cutting is all done by the beveled edges at the end. The chamfered cutting edges make an angle of 45°. The fluted body fits into the
reamed hole.

Chucking Rose Reamer
Chucking Rose Reamer

The body is slightly tapered, smaller towards the shank to prevent bending in the hole. This type of reamer can remove a greater amount of metal than a fluted type. A chucking rose reamer is shown in the figure.

3. Machine Bridge Reamer

Straight Fluted Machine Bridge Reamer
Straight Fluted Machine Bridge Reamer

A machine bridge reamer illustrated in figure (A)and (B) is used in portable electric or pneumatic tool for reaming in ship-building, structural, and plate work.

Helical Fluted Machine Bridge Reamer
Helical Fluted Machine Bridge Reamer

These types of reamer have parallel cutting edges, with a long lead integral with a tapered shank for holding and driving the reamer. The flutes may be straight or helical. The diameter of the reamer varies from 6 4 to 37 mm.

You Might Like: 15 Different Types of Milling Machines

4. Machine Jig Reamer

A machine jig reamer consists of short, parallel cutting edges with bevel lead and a guide between the shank and cutting edges integral with a tapered shank for holding and driving.

Machine Jig Reamer
Machine Jig Reamer

The flutes are helical. The plain part of the body fits into a bushing in the jig and accurately locates the reamer. The diameter of the reamer varies from 7 to 50 mm. The reamer is illustrated in the figure.

5. Parallel Hand Reamer with Parallel Shank

This reamer consists of parallel cutting edges with taper and bevel lead integral with a shank of the nominal diameter of the cutting edges, and with a square on the end.

Parallel hand type with parallel shank
Parallel hand reamer with parallel shank

The flutes may be straight or helical. The hand reamer has a square tang and is intended to be hand driven for accurately sizing the holes.

The reamers are supposed to remove the minimum amount of metal from 0:05 to 0 125 mm. It is slightly tapered towards the end for a distance equal to its diameter for easy starting. This type of reamer is shown in the figure.

6. Socket Reamer for Morse Taper

This reamer may be straight or taper shank type and maybe hand or machine-driven. The reamers have taper cutting edges to suit Morse taper, integral with a parallel or taper shank. The flutes may be straight or helical.

Socket type for Morse Taper
Socket Reamer for Morse Taper

The reamers are available in a set of three: roughing, pre-finishing and finishing. The diameter of reamers is available for the finishing. Morse taper holes from No. 1 to 6. A socket reamer is shown in the figure.

7. Shell Reamer

A shell reamer is shown in the figure has an axial hole for use on an arbor, and has virtually parallel cutting edges with a sharpened bevel lead. These types of reamer are employed for finishing large holes to save the tool Numerous sizes of shells can be interchanged with one arbor.

Shell Reamer
Shell Reamer

This saves the cost of the solid shank in each case. The shell reamer may be either of the rose chucking type for truing the hole or fluted type for finishing. The flutes may be straight or helical. The diameter of the reamer varies from 24 to 100 mm.

8. Taper Pin Reamer

Taper Pin type
Taper Pin Reamer

The reamer shown in the figure may he hand or machine is driven. This has taper cutting edges for holes to suit pins with a taper of I in 50, having-a parallel or taper shank for holding and driving the reamer. The flutes may be straight or helical.

9. Expansion Reamer

Expansion type
Expansion Reamer

An expansion reamer is so made that it may be adjusted by a very small amount to compensate for wear, or to accommodate some variation in hole size. As shown in the figure to effect expansion, the clamping nut is loosened and the plug 1 is pushed inward. This causes the expansion of the blades by a small amount.

Applications of Reamer

The following are the applications of reamer:

  1. A reamer is a type of rotary cutting tool mostly used in metalworking.
  2. A reamer is a tool used for expanding or finishing pre-drilled holes, bored, or cored to give a good finish and an exact dimension.
  3. The reamer is intended to be used in a drill press, turret lathe.
  4. Reamer is also used in the screw-cutting machine.

Conclusion
