30 Types of Pliers: How To Use? with [Pictures and PDF]

In this article, you will learn 30 Different Types of Pliers and How They Used? with Pictures. You can also download the PDF at the end of this article.

Pliers and Types

Plier is a very useful tool. with the help of a plier, small jobs and articles can be held. It is also used to cut or turn wires. Its jaws are hardened and tempered. The size of a plier varies from 4” to 10” For different kinds of jobs.

Furthermore, screwdrivers are applied to tightening and loosening to any given job or screw. Apart from that, check out the types of hammerstypes of spanners, and types of wrenches used in the workshop. In the workshops, normally, the following all types of pliers are used.

Types of Pliers

The following are the different types of pliers and their uses:

  1. According to the standard types of pliers
    1. Hose clamp pliers
    2. Crimping pliers
    3. Long nose pliers
    4. Diagonal pliers
    5. Slip joint pliers
    6. Snap Ring Pliers
    7. Tongue and Groove pliers
  2. According to the special types of pliers
    1. Bent nose pliers
    2. Bail making pliers
    3. Brake spring pliers
    4. Battery pliers
    5. Canvas pliers
    6. Chain nose pliers
    7. Flat or Combination pliers
    8. Eyelet pliers
    9. Fencing pliers
    10. Grommet pliers
    11. Hose grip pliers
    12. Linesman pliers
    13. Nail puller pliers
    14. Locking pliers
    15. Piston ring pliers
    16. Running pliers
    17. Sheet metal pliers
    18. Spark plug pliers
    19. Welding pliers
    20. Split ring pliers
    21. Oil filter pliers
    22. Soft jaw pliers
    23. Gas pliers

Read Also: LIST OF 24 TYPES OF SCREWDRIVERS & HOW TO USE THEM?

1. Hose Clamp Plier

Types of pliers - Hose Clamp Plier
Hose Clamp Plier

A Hose clamp plier is manufactured to compress the hose and spring clamp, making the joint tight. They come in a wide range of forms. It is also known as spring clamp pliers and radiator hose pliers.

This plier has a peg-shaped tooth on each jaw, which is used to pinch the clamp. Some models used directly on the hose.

2. Crimping Plier

A Crimping plier consists of a fulcrum at the end and is used as a nutcracker. The wires are fed first into the jaw jack, then to the connector. It is also known as crimping tools.

Pressing the handle will damage the plastic coating and causes to deform (or collapse) in such a way that they stick together and provide the data to pass through. They are massively used in networking and telecommunications.

3. Long Nose Plier

Types of pliers - Long Nose Plier
Long Nose Plier

The Jaws of this type of pliers are tapered in length and are conical. These pliers do not have a cutting edge.

These are used where there is no adequate space for a combination of the plier. They are mainly used in the gold smithy, radio, and T.V. jobs for making hooks of wires bending wires. Bearing locks can also be opened with it.

4. Diagonal Plier

The jaws of diagonal pliers have an angled edge that is made to cut through the thick wire. They are very strong and can also be used to cut nails.

Hence they are useful in carpentry and also in electrical work. It is also known as side-cutting plier, wire cutter, diagonal cutting plier, and flush cut plier.

5. Slip Joint Pliers

Types of pliers - Slip Joint Plier
Slip Joint Pliers

As per their name, these are pilers that permit adjustment to a greater range of opening by slipping motion of the two halves about the pin or rivet which connects them. Their jaws are square so they can hold only square jobs. They can not cut wires etc.

6. Snap Ring Plier

types of pliers - Snap Ring Plier
Snap Ring Plier

The Snap ring pliers consist of small or round jaws to help in closing snap plates. That rings are open-ended ends that fit into the grooves of a dowel or other round object. It is also known as C clip pliers, lock ring pliers, retaining ring pliers, and circlip pliers.

Once they are closed, the ring can turn easily but it is inefficient to slide sideways. They are employed for gear on mountain bikes and similar vehicles.

7. Tongue and Groove Pliers

Types of pliers - Tongue and Groove Plier
Tongue and Groove Pliers

The Tongue and groove pliers are adjustable types of pliers with a jagged groove with an upper handle, allowing the lower jaw to be closed in multiple positions. These jaws make this tool helpful for turning nuts and bolts. It is also known as channel locks.

Special Types of Pliers

The previous pliers are all standard found in tool kits, there are many more specialized pliers that you can never make out of your old trades.

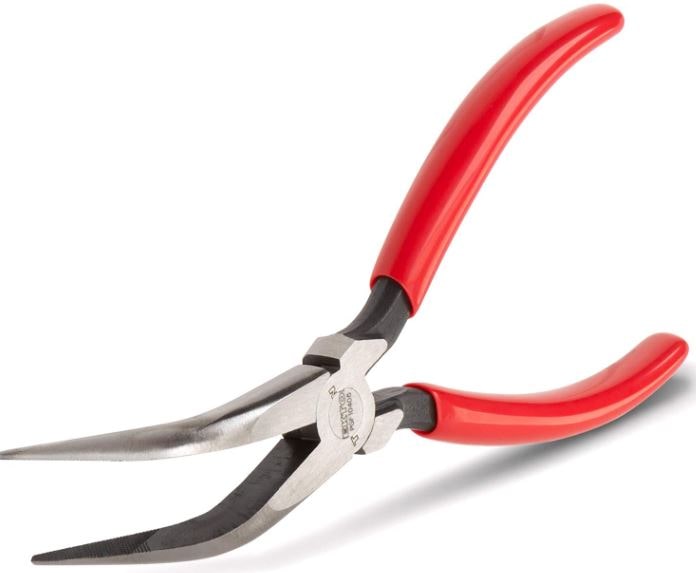

1. Bent Nose Pliers

Types of pliers - Bent Nose Plier
Bent Nose Pliers

This variation of needle nose pliers consists of a set of jaws that tilt at an angle at the midpoint (45 or 90 meters at most). This allows them to fasten surfaces when multiple pliers are needed.

As a result of this, they are useful in jewelry making, electrical work, and other businesses that deal with shaping wire.

2. Bail Making Pliers

Types of pliers - Bail Making Plier
Bail Making Pliers

The jaws of this plier consist of two dowels, one larger than the other. It is primarily used in jewelry making, the wire is wrapped around the jaw to form clasps, ear wires, and many other shaped loop components.

3. Brake Spring Pliers

Types of pliers - Brake Spring Plier
Brake Spring Pliers

A Brake spring plier is actually a multi-device specifically designed to deal with the springs found in drum brakes.

The tip of one jaw is rounded to remove the springs, while the other is rotated to hold the springs back. One of the handles also consists of a rachet to separate the shoe hold-down pin.

4. Battery Pliers

Types of pliers - Battery Plier
Battery Pliers

They are designed to used mainly in the automotive industry to maintain bolts on car batteries and jumper cables, these pliers made of small angled jaws. The lower jaw is slightly shorter, and both jaws are thicker to make them more durable.

5. Canvas Pliers

Types of pliers - Canvas Plier
Canvas Pliers

The canvas plier made of wide-jaw, this allows a person to do what usually takes two. The jaws are usually padded to avoid damaging the jaw surface while it extends over the frame. It is also known as canvas stretching pliers.

6. Chain Nose Pliers

Types of pliers - Chain Nose Plier
Chain Nose Pliers

These chain nose pliers are one of the tools used in wire shaping and jewelry making. The jaw form allows bending, crimping, and wire shaping. They mainly featuring the stubborn triangular jaw.

7. Flat or Combination Pliers

This piler has flat jaws. One side of the jaw is sharp for cutting purposes. These pilers are useful in a large number of jobs like cutting wires, turning nails, and each small job. Pilers used in electrical jobs have insulated handles.

A combination of pliers should not be used for cutting a very hard metal else its edge would be spoiled. For strong grip of jobs parallel slots are made on the inner side of its jaws.

8. Eyelet Pliers

Types of pliers - Eyelet Plier
Eyelet Pliers

The eyelets plier allow the addition of laces and drawstrings to the fabric. These holes consist of a ring and long hub which should be dislodged. It is an important component in tailoring, cobbling, and other textile industries.

The modern eyelet pliers made of interchangeable dies to provide for both piercing and spasms, even though some only have a wheel in the upper surface or upper jaw that has different dye tips.

9. Fencing Pliers

Types of pliers - Fencing Plier
Fencing Pliers

This curious-looking multi-tool resembles a hammer with two handles. The positions in the fulcrum provide to cut the wires of various gauges, while the staples in the left jawbone have a hammer surface for driving.

The right jaw paws can be used to remove staples, and the jaw itself has a gripping surface and a round grip hole.

10. Grommet Pliers

Types of pliers - Grommet Plier
Grommet Pliers

They are as eyeglass pliers in work, grommet pliers are used to making holes in tarps and other materials, as well as by gluing the grommets.

Grommets have heavy-duty applications than eyelets, making the tool perfect for crafts with strong materials such as tent-making.

11. Hose Grip Pliers

Types of pliers - Hose Grip Plier
Hose Grip Pliers

These are special types of pliers are made for ease in or out of tight spaces. Their grab jaws are shaped in a way to protect the hoses from damage such as vacuum lines, heater hoses, and fuel lines.

Just hold and turn the hose on or off. Hose grip pliers also work for clamps, spark plugs, and various different small elements. They are also known as grabber pliers.

12. Linesman Pliers

Linesman Plier
Linesman Pliers

Although the name may not sound familiar, it is likely that you have seen or used them at some time. They are consists of a small gripping surface towards the tip and a cutting surface in the middle, it is a multipurpose tool often used in electrical work.

Due to the multi-tool function and jaw strength, it can also be used for twists, turns, and curt metal which can be very hard for other pliers. In some cases, insulated handles are able to protect the user from electric shock, even although most models do not evaluate against shock.

13. Nail Puller Pliers

Nail Puller Plier
Nail Puller Pliers

The tips of its claws are taped so that it can be dug under the head of the nails and cast them out. Some variations also have a claw behind the right jaw to take extra advantage. It looks similar to tongs.

14. Locking Pliers

Locking Plier
Locking Pliers

These pliers are made to lock the jaws in place, making them engaging for snatching screws and bolts.

There are a variety of jaw sizes available for this tool, which enables you to choose a design that best suits your needs. They are also known as Vise-Grips.

15. Piston Ring Pliers

Piston Ring Plier
Piston Ring Pliers

There are two forms of piston ring pliers, both are used in engines to remove and replace piston rings. The first have simple mounting tips that can be used to stretch the piston ring for easy replacement.

The other has a much larger curved set with multiple braces to support the ring and to decrease the risk of warping.

16. Running Pliers

Running Plier
Running Pliers

These pliers make a clean break along the run lines in the glass. The wide jaws are adjusted to match the thickness of your glass and have a centerline to assure precise alignment when moving with the score. They are used in creating stained glass crafts.

17. Sheet Metal Pliers

Sheet Metal Plier
Sheet Metal Pliers

It is wide and rectangular in shape. These types of pliers are used to bend and seam the sheet metal. They are commonly seen in metal shops and other industries where sheet metal is done.

18. Spark Plug Pliers

Spark Plug Plier
Spark Plug Pliers

The narrow jaws of these types of pliers are combined with insulated tongs or cylindrical holders. The tips grip plug, as the name itself suggests, by boot or plug wire helps in automotive repair.

19. Welding Pliers

Welding Plier
Welding Pliers

The jaws of the welding pliers are similar to those of the combination pliers, the needle having the same tip as the jaw of the plier of the nose.

They can perform a variety of tasks, including splatter removal, gripping wire, cutting, and hammer handling. As the name itself suggests, these types of pliers are heavily used in welding-based trades.

20. Split Ring Pliers

Split Ring Plier
Split Ring Pliers

The split ring pliers have a bent tip on the lower jaw. This nozzle acts as a wedge, splitting individual coiled rings. They are used in the manufacture of fishing tackles and keyrings. It is also known as fishing pliers.

21. Oil Filter Pliers

Oil Filter Plier
Oil Filter Pliers

They are asymmetrical looking pliers consist of a C-shaped pair of jaw teeth, with each one longer than the other. They are used in the automotive industry to eliminate oil filter coverings.

22. Soft Jaw Pliers

Soft Jaw Plier
Soft Jaw Pliers

The soft jaw pliers involve many common types of pliers. The difference is that these pliers have padded jaws to prevent scratches on chrome and other soft metals or exposed surfaces. They are mainly used for plumbing and scuba diving equipment.

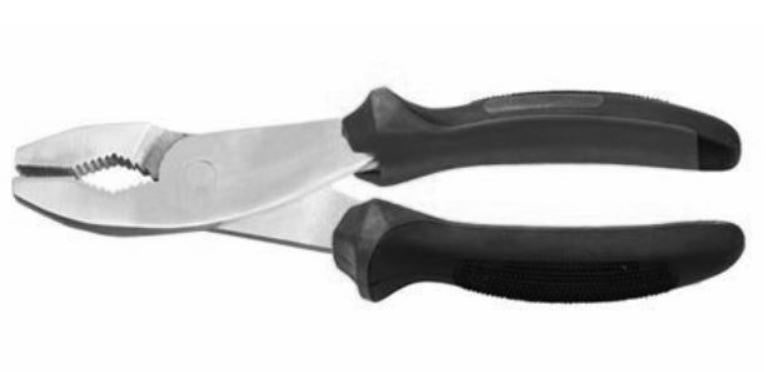

23. Gas Pliers

Gas Plier
Gas Pliers

This type of pliers is used to open nuts fixed on gas and oil pipes etc. Its opening can be enlarged or closed as per requirement like the slip joint pliers.

Precautions of Using Pliers

  1. Pliers should not be used in place of a hammer, spanner, or wrench.
  2. For different types of jobs, different pliers should be used.

Download PDF of this article


Conclusion

As you know now, a plier is used for small jobs and articles can be made. It is also used to cut or bend wires. As it is useful tools, it may wonder you how many different types of pliers can be. If you have still any doubts about the “Types of Pliers and Their Uses” you can contact us or ask in the comments.
